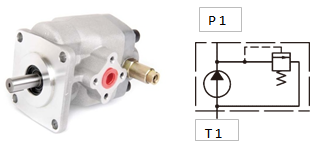

Gear Pump with Relief Valve PR1

Model:PRI020/030/040/060/075/090/105/120
Displacement：2~12 cc/rev
Max.Pressure：250/210 KGF/CM2(3500PSI)
Rotation Direction:R-clockwise L-counter-clockwise
Shaft Type:X-straight shaft Y-spline shaft Z-taper shaft
Flange Mounting Type:JIS 4-bolt
Operational Pressure:210/175 kgf/cm2
Speed Rate:1800 r.p.m.
Speed Max:5000/4500/3500/2500/2000 r.p.m.
Speed Min:900/850/800/700/600/550/500 r.p.m.
