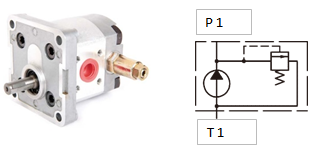

Gear Pump with Relief Valve PR2

Model:PR2-008/010/020/030/040/050/060/080
Displacement：0.8~7.8 cc/rev
Max.Pressure：250 KGF/CM2(3500PSI)
Rotation Direction:R-clockwise L-counter-clockwise
Shaft Type:X-straight shaft Y-spline shaft Z-taper shaft
Flange Mounting Type:SAE 2-bolt DIN 4-bolt European 4-bolt
Operational Pressure:210/175 kgf/cm2
Speed Rate:1800 r.p.m.
Speed Max:4500/4000/3200 r.p.m.
Speed Min:1000/600 r.p.m.
