HD-G02-DL-AC (DOULBE COIL-BOX TYPE)

HD-G02-DL-AC (DOULBE COIL-BOX TYPE)

Model:5

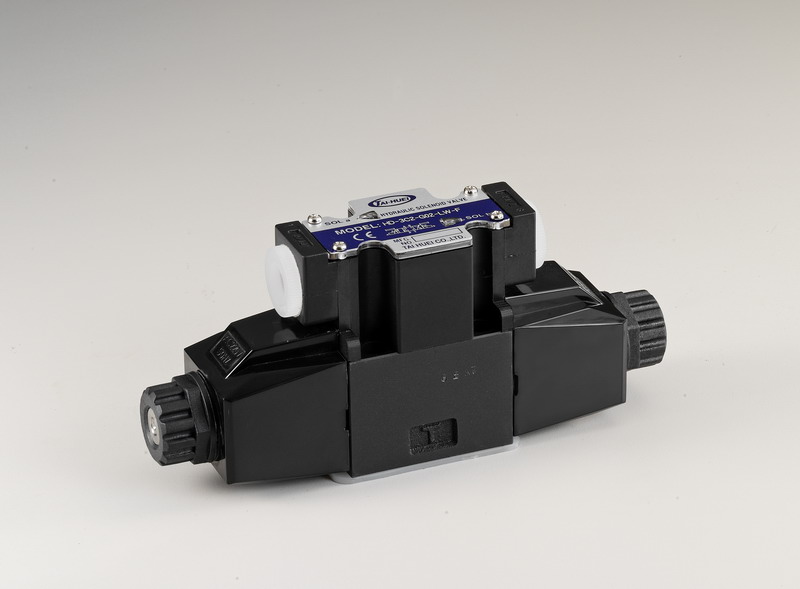

"High flow wet pin Solenoid Directional control valve (plug-in board type)

HD-G02-DL-AC (DOULBE COIL-BOX TYPE)"

Y series: High efficiency and low current for DC

solenoid directional Control valve HD-G02-LW-AC(DOUBLE COIL)

Voltage: DC12/DC24 Pressure range: 70~250

"VY series: High efficiency and low current for DC

solenoid directional Control valve HD-G02-LW-AC(DOUBLE COIL)"

Voltage: DC24 Pressure range: <70

Valve size: G02 1/4”

Wiring connection type: DIN TYPE
Download Add to inquiry
Description

 Tips:Y Type & YV Type Valve Feature

Dual line tank design reduces the pressure drop resulting in better flow characteristies.

The spool's design is the increased size and can improve the better flow characteristics Huge increasing of back-pressure of back-pressure allowable and lower internal resistance.

New type of magnetic coil and tube combination, enable the solenoid valve can lower the temperature effectively during operation.

New special design type of coil can lower current effectively, even energy-saving. Can reach the high flow and pressure as the same as E-type.

Y and YV series solenoid valves can start with 20VDC.

YV series will maintain a low coil temperature and a low current usage.
