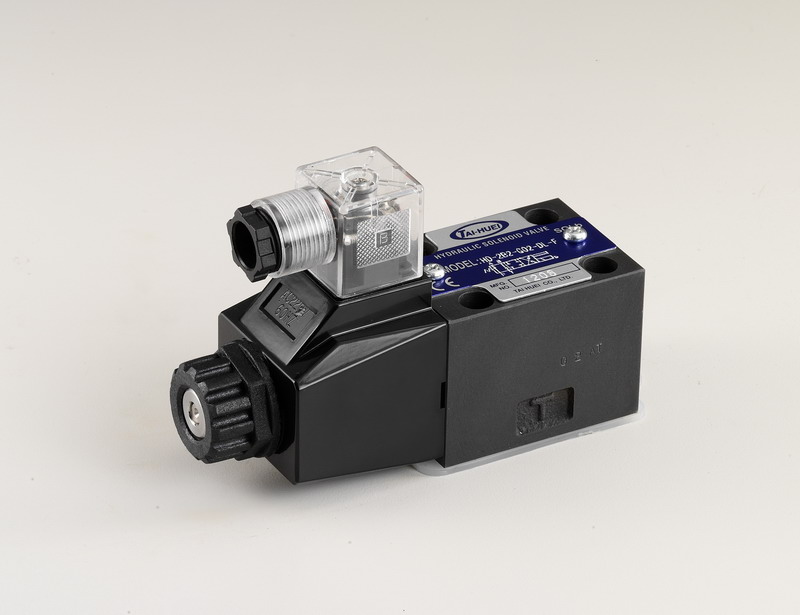

HD-G02-DL-AC (SINGLE COIL-DIN TYPE)
Model：2
"High flow wet pin Solenoid Directional control valve (plug-in board type)
HD-G02-DL-AC (DOULBE COIL-DIN TYPE)"
Y series: High efficiency and low current for DC
solenoid directional Control valve HD-G02-DL-AC(DOUBLE COIL)
Voltage: DC12/DC24 Pressure range: 70~250
"VY series: High efficiency and low current for DC
solenoid directional Control valve HD-G02-DL-AC(DOUBLE COIL)"
Voltage: DC24 Pressure range: <70
Valve size: G02 1/4”
Wiring connection type: DIN TYPE
Download
Add to inquiry
HD-G02-DL-AC (DOULBE COIL-DIN TYPE)"
Y series: High efficiency and low current for DC
solenoid directional Control valve HD-G02-DL-AC(DOUBLE COIL)
Voltage: DC12/DC24 Pressure range: 70~250
"VY series: High efficiency and low current for DC
solenoid directional Control valve HD-G02-DL-AC(DOUBLE COIL)"
Voltage: DC24 Pressure range: <70
Valve size: G02 1/4”
Wiring connection type: DIN TYPE
Description
Tips:Y Type & YV Type Valve Feature
★Dual line tank design reduces the pressure drop resulting in better flow characteristies.
★The spool's design is the increased size and can improve the better flow characteristics Huge increasing of back-pressure of back-pressure allowable and lower internal resistance.
★New type of magnetic coil and tube combination, enable the solenoid valve can lower the temperature effectively during operation.
★New special design type of coil can lower current effectively, even energy-saving. Can reach the high flow and pressure as the same as E-type.
★Y and YV series solenoid valves can start with 20VDC.
★YV series will maintain a low coil temperature and a low current usage.
