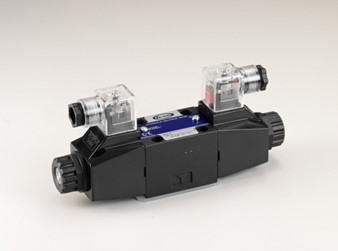

HD-G03-DL-AC & DC (DOUBLE COIL-DIN TYPE)
Model:8
"High flow wet pin Solenoid Directional control valve (plug-in board type)
HD-G03-DL-AC & DC (DOUBLE COIL-DIN TYPE)"
B series: High efficiency and Low current Solenoid Directional control valve
Voltage: AC110/220 DC12/24
E series: Standard High Flow Wet Pin design valve
Voltage: AC110/220 DC12/24
Valve size: G03 3/8”
Wiring Connection Type: Din Type
Max.Pressure: 315 kgf/cm2
Allowable Back pressure: 70-60kgf/cm2
G03: Screw of main body M6X35LX4pcs
B-type valve can lower the current effectively,even energy-saving. B-type valve can reach the high flow and pressure as the same as E-type.
B type & E type valve increased the port size to improve the flow greatly.
The B and E type solenoid valves size conform to the international standard and totally interchangeable.
Download
Add to inquiry
HD-G03-DL-AC & DC (DOUBLE COIL-DIN TYPE)"
B series: High efficiency and Low current Solenoid Directional control valve
Voltage: AC110/220 DC12/24
E series: Standard High Flow Wet Pin design valve
Voltage: AC110/220 DC12/24
Valve size: G03 3/8”
Wiring Connection Type: Din Type
Max.Pressure: 315 kgf/cm2
Allowable Back pressure: 70-60kgf/cm2
G03: Screw of main body M6X35LX4pcs
B-type valve can lower the current effectively,even energy-saving. B-type valve can reach the high flow and pressure as the same as E-type.
B type & E type valve increased the port size to improve the flow greatly.
The B and E type solenoid valves size conform to the international standard and totally interchangeable.
Description
Tips:B-type/E-type Valve Feature
★Dual line tank design reduces the pressure drop resulting in better flow characteristics.
★The installation of anti-shock gasket enables the main body to withstand higher pressure and the main body will not deformation easily.
★New type of magnetic coil and tube combination, enable the solenoid valve to lower the temperature effectively during operation.
★New special design type of coil can lower current effectively,even energy-saving can reach the high flow and pressure as the same as E-type.
