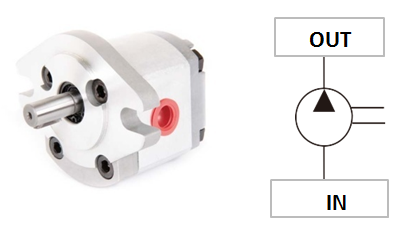

Single Gear Pump HGP-1A

Model:HGP-1A-05/08/1/2/26/3/4/5/6/8
Displacement：0.5~7.8 cc/rev
Max.Pressure：250 KGF/CM2(3500PSI)
Mounting:flange/foot type
Rotation Direction:R-clockwise L-counter-clockwise
Shaft Type:X-straight shaft Y-spline shaft M-hydraulic motor
Flange Mounting Type:SAE-2-bolt/DIN-4-bolt/European 4-bolt
Operational Pressure:210 & 170 kgf/cm2
Speed Rate:1800 r.p.m.
Speed Max:4500 r.p.m.
Speed Min:1000 r.p.m.
