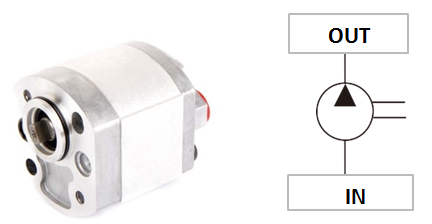

Single Gear Pump HGP-1AU

Model:HGP-1AU05/08/1/2/26/3/4/5/6/8
Displacement：0.5~7.8 cc/rev
Max.Pressure：250 KGF/CM2(3500PSI)
Mounting:flange type
Rotational Direction:R-clockwise L-counter-clockwise
Shaft Type:W tang
Operational Pressure:210/170 kgf/cm2
Speed Rate:1800 r.p.m.
Speed Max:4500/4000/3200 r.p.m.
Speed Min:1000/600 r.p.m.
