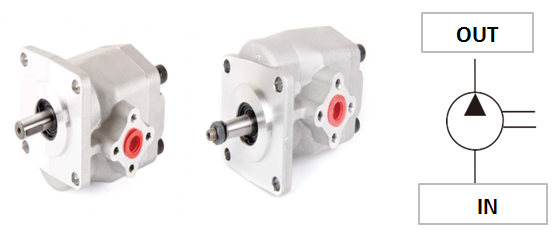

Single Gear Pump HGP-2A

Model:HGP-2A-2/25/3/4/5/6/8/9/11/12
Displacement：2~12 cc/rev
Max Pressure：250 KGF/CM2(3500PSI)
Mounting Type:flange/foot type
Rotation Direction:R-clockwise L-counter-clockwise
Shaft Type:W-tang shaft X-straight shaft Y-spline shaft Z-taper shaft
Flange Mounting Type:JIS 4-bolt
Operational Pressure:210 & 175 kgf/cm2
Speed Rate:1800 r.p.m.
Speed Max:5000 r.p.m.
Speed Min:1000/850/800/700/600/550/500 r.p.m.
