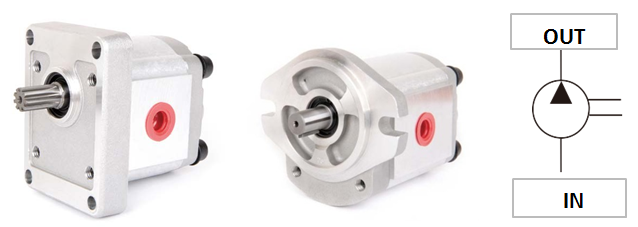

Single Gear Pump HGP-3A

Model:HGP-3A-2/3/4/6/8/11/13/14/17/19/23/25/28/30/33/35
Displacment：2~35 cc/rev
Max Pressure：250 KGF/CM2(3500PSI)
Mounting Type:flange/foot type
Rotation Direction:R-clockwise L-counter-clockwise
Shaft Type:X-straight shaft Y-spline shaft Z-taper shaft M-hydraulic motor
Flange Mounting Type:SAE 2-bolt DIN 4-bolt European 4-bolt
Operational Pressure:250/210/175/140 kgf/cm2
Speed rate:1800 r.p.m.
Speed Max:4000 r.p.m.
Speed Min:700/600/500 r.p.m.
Port Size PT: Out-1/2 & 3/4 In-3/4 & 1"
