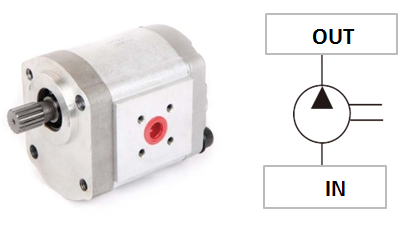

Single Gear Pump HGP-3A2D

Model:HGP-3A2D-2/3/4/6/8/11/13/17/19/23/25/28/30/33/35
Displacement：2~35 cc/rev
Max.Pressure：250 KGF/CM2(3500PSI)
Mounting:flange/foot type
Rotation Director:R-clockwise L-counter-clockwise
Shaft Type:X-stright shaft Y-spline shaft Z-taper shaft
Operational Pressure:250/175/140/125 kgf/cm2
Speed rate:1800/1200 r.p.m.
Speed Max:4000/3000/2800/2500 r.p.m.
Speed Min:700/600/500 r.p.m.
Port Size PT:Out-1/2 & 3/4 In-3/4 & 1"
