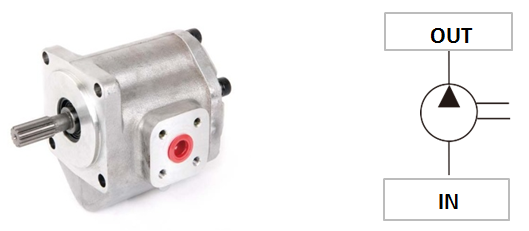

Single Gear Pump HGP-3AS

Model:HGP-3AS-4/6/8/11/13/14/17/19
Displacement：4~19.2 cc/rev
Max.Pressure：250 KGF/CM2(3500PSI)
Mounting:flange/foot type
Rotation Direction:R-clockwise L-counter-clockwise
Shaft Type:X-straight shaft Y-spline shaft Z-taper shaft
Flange Mounting Type:JIS 4-bolt
Operational Pressure:210 kgf/cm2
Speed Rate:1800 r.p.m.
Speed Max:4000 r.p.m.
Speed Min:700/600/500 r.p.m.
Port Size PT:Out-1/2 In-3/4
