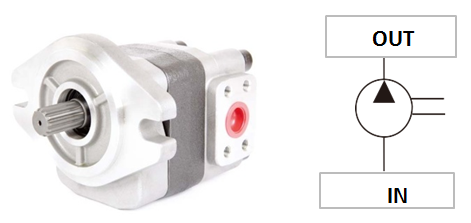

Single Gear Pump HGP-4A

Model:HGP-4A-20/23/25/28/32/36/40/45/50/55/60/70
Displacement：20~70 cc/rev
Max.Pressure：300 KGF/CM2(3500PSI)
Mounting:flange/foot type
Rotation Direction:R-clockwise L-counter-clockwise
Shaft Type:X-straight shaft Y-spline shaft Z-taper shaft
Flange Mounting Type:SEA 2-bolt
Operational Pressure:250/210/175/140/125 kgf/cm2
Speedloaded:600 r.p.m.
Speed Unloaded:3000/2600/2500/2400/2000 r.p.m.
Port Size PT:Out-3/4 & 1"In-1" & 11/4
