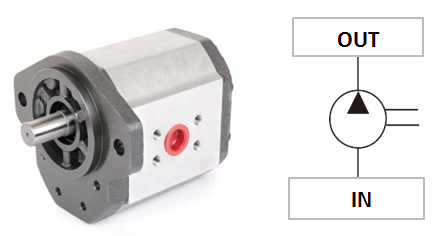

Single Gear Pump HGP-5AI

Model:HGP-5A-22/26/33/44/48/55/63/75/80/90
Displacement:22~90 cc/rev
Max.Pressure：330 KGF/CM2(4620PSI)
Mounting:flange type
Rotation Direction:R-clockwise L-counter-clockwise
Shaft Type:X-straight shaft Y-spline shaft Z-taper shaft
Flange Mounting Type:SAE 2-bolt DIN 4-bolt
Operational Pressure:280/240 kgf/cm2
Speed loaded:3000/2500 r.p.m.
Speed Unloaded:700/600 r.p.m.
Port Size PT:Out-3/4 & 1" In-1" & 11/4
