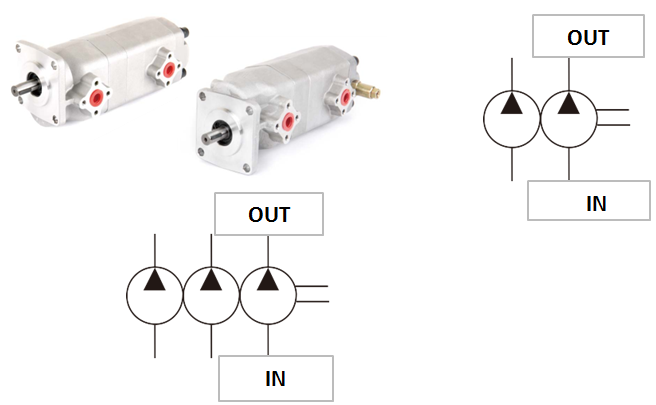

Tandem Gear Pump HGP-22A
Description
Model:HGP-22A/22/33/44/55/66/88/99/1111/1212
Displacement：2~12 cc/rev
Max.Pressure：250/210 KGF/CM2(3500PSI)
Mounting:flange/foot type
Rotation Direction:R-clockwise L-counter-clockwise
Shaft Type:X-straight shaft Y-spline shaft Z-taper shaft
Flange Mounting Type:JIS 4-bolt
Operational Pressure:210 kgf/cm2
Speed Rate:1800 r.p.m.
Speed Max:4000 r.p.m.
Speed Min:700 r.p.m.
