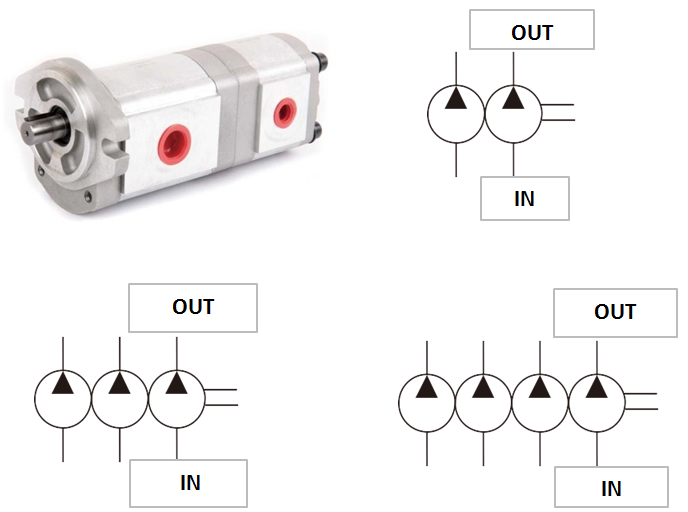

Tandem Gear Pump HGP-33A

Model:HGP-33A-22/33/44/66/88/1111/1313/1414/1717/1919/2323/2525/2828/3030/3333/3535
Displacement：2~35 cc/rev
Max.Pressure：250/210/175/140 KGF/CM2(3500PSI)
Mounting:flange/foot type
Rotation Direction:R-clockwise L-counter-clockwise
Shaft Type:X-straight shaft Y-spline shaft
Flange Mounting Type:SAE 2-bolt DIN 4-bolt European 4-bolt
Operational Pressure:210/175/140/125 kgf/cm2
Speed Rate:1800 r.p.m.
Speed Max:4000/3000/2800/2500 r.p.m.
Speed Min:700/600/500 r.p.m.
