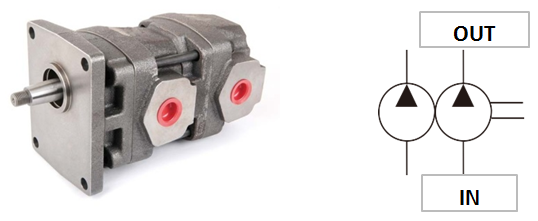

Tandem Gear Pump HGP-55AI

Model:HGP-55AI/2222/2626/3333/4444/4848/5555/6363/7575/8080/9090
Displacement：22~90 (Single) cc/rev
Max.Pressure：300/250/240/210/180 KGF/CM2(4200PSI)
Mounting:flange type
Rotation Direction:R-clockwise L-counter-clockwise
Shaft type:X-straight shaft Y-spline shaft Z-taper shaft
Flange Mounting Type:DIN 4-bolt
Operational Pressure:280/240/210/190/170/150 kgf/cm2
Speed Loaded:3000/2750/2500 r.p.m.
Speed Unloaded:500 r.p.m.
Port Size PT:In-1" & 11/4 Out-3/4 & 1"
