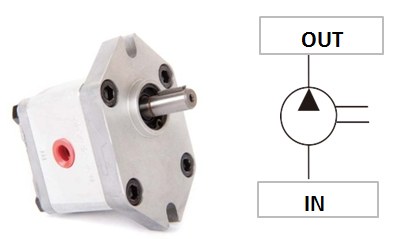

Single Gear Pump HGP-05A

Model:HGP-05A-03/05/08/11
Displacement：0.35〜1.13 cc/rev
Max.Pressure：250 KGF/CM2(3500PSI)
Mounting:flange/foot type
Rotation Direction:R-clockwise L-counter-clockwise
Shaft Type: X straight shaft
Operational Pressure: 210 kgf/cm2
Speed Rate: 1800 r.p.m.
Speed Max: 3500 r.p.m.
Speed Min: 800 r.p.m.
Port Size: Out-1/8 In-1/8 & 1/4
