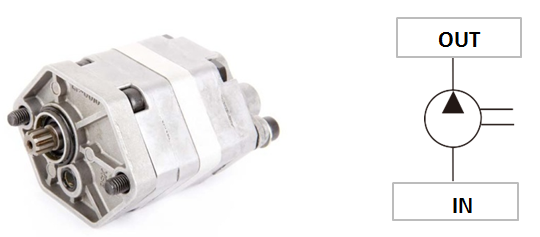

Single Gear Pump HGP-1.5A

Model:HGP-1.5A-08/1/12/16/2/25/3/4/5/65/8
Displacement：0.8~8 cc/rev
Max.Pressure：350 KGF/CM2(4900PSI)
Mounting:flange type
Rotation Direction:R-clockwise L-counter-clockwise
Shaft Type:Y-spline shaft
Operational Pressure:300/250/210 kgf/cm2
Speed Rate:1800 r.p.m.
Speed Max:5000/4000/3200/2400 r.p.m.
Speed Min:1000/800/700/600/500 r.p.m.
