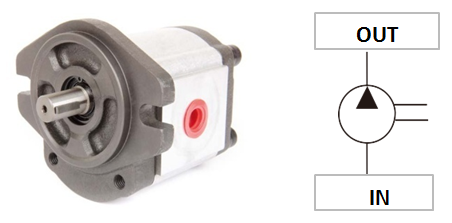

Single Gear Pump HGP-3AI

Model:HGP-3A2D-2/3/4/6/8/11/13/17/19/23/25/28/30/33/35
Displacement：2~35 cc/rev
Max.Pressure：280 KGF/CM2(3500PSI)
Mounting:flange/foot type
Rotation Direction:R-clockwise L-counter-clockwise
Shaft Type:X-straight shaft Y-spline shaft Z-taper shaft
Flange Mounting Type:SAE 2-bolt DIN 4-bolt
Operational Pressure:240 kgf/cm2
Speed Rate:1800/1200 r.p.m.
Speed Max:4000/3500/3000/2800/2500 r.p.m.
Speed Min:700/600/500 r.p.m.
Port Size PT:Out-1/2 & 3/4 In-3/4 & 1"
